International Space Station

Update Jan 2020
Now available: freeware android based SSTV decode for mobile phone.
Robot36 - SSTV Image Decoder
Following modes are supported:
Robot Modes: 36 & 72
PD Modes: 50, 90, 120, 160, 180, 240 & 290
Martin Modes: 1 & 2
Scottie Modes: 1, 2 & DX
Wraase Mode: SC2 180
Old B/W or unsupported modes can be viewed in "Raw Mode".
If an calibration header gets detected, the resulting image will be saved
in the "Pictures" directory and can be immediately seen in the Image gallery.

Link for download Robot36 - SSTV Image Decoder

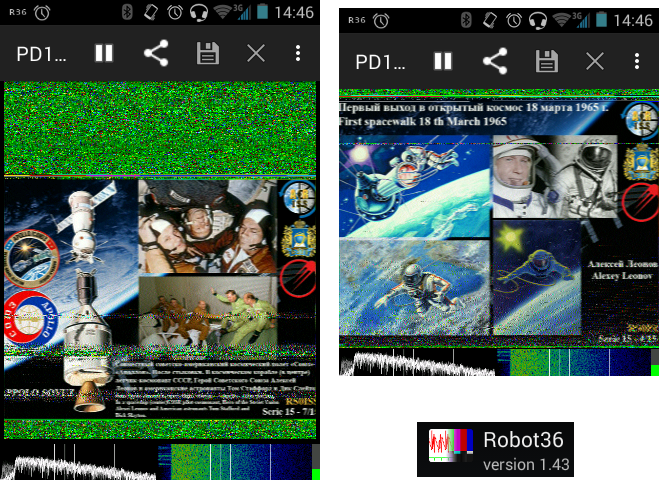

Screenshots of decodes obtained from Expedition 61 - ARISS Series 15 Leonov mission Dec 2019

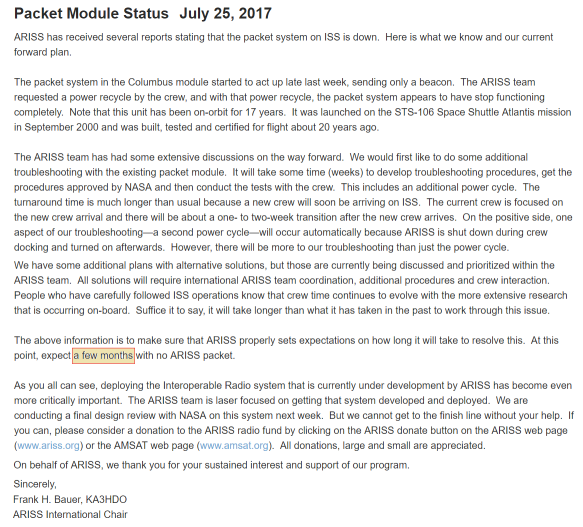

Decoding the "packet" radio signal on ~~145.825 MHz~~
~~reassigned to 437.55 MHz (UHF) Dec 2016~~
then reassigned to 145.825 MHz mid April 2017
and watching the downlink video (Internet)
SSTV (PD180 format) on 145.80 MHz FM (when scheduled - monitor WWW newsgroups)

Mouseover to enlarge.............

Amazing view of the Space Station from Philip Smith in Manorville, NY on March 25, 2018
Using a Hedge HD 14" telescope with a 1.6X barlow and red Astrodon filter and a ZWO ASI290 mono camera.
Max ISS pass was 62° at 8:06pm EST.
The mount and software helped me lock onto the ISS
The seeing at the time was poor.
I centered and cropped frames but I did not stack any of these images.
I am tracking with modified EQ-G mount in Alt-AZ mod set-up
with larger motors and custom software
that is not for sale that is called Videos Sky Pro 2015.
It is the only one of it kind along with a custom pier that I can rotate the mount 360° around.
It locks onto the ISS with a different camera and the software.
I image the ISS with another software and camera for recording.
I use 2 laptops at the same time.

Origin: Philip Smith's photography of the ISS on 3-25-18 from Manorville NY, USA

I am tracking with modified EQ-G mount in Alt-AZ mod set-up with larger motors and custom software that is not for sale that is called Videos Sky Pro 2015. I is the only one of it kind along with a custom pier that I can rotate the mount 360° around. It locks onto the ISS with a different camera and the software. I image the ISS with another software and camera for recording. I use 2 laptops at the same time. I hope this helps you for an answer.

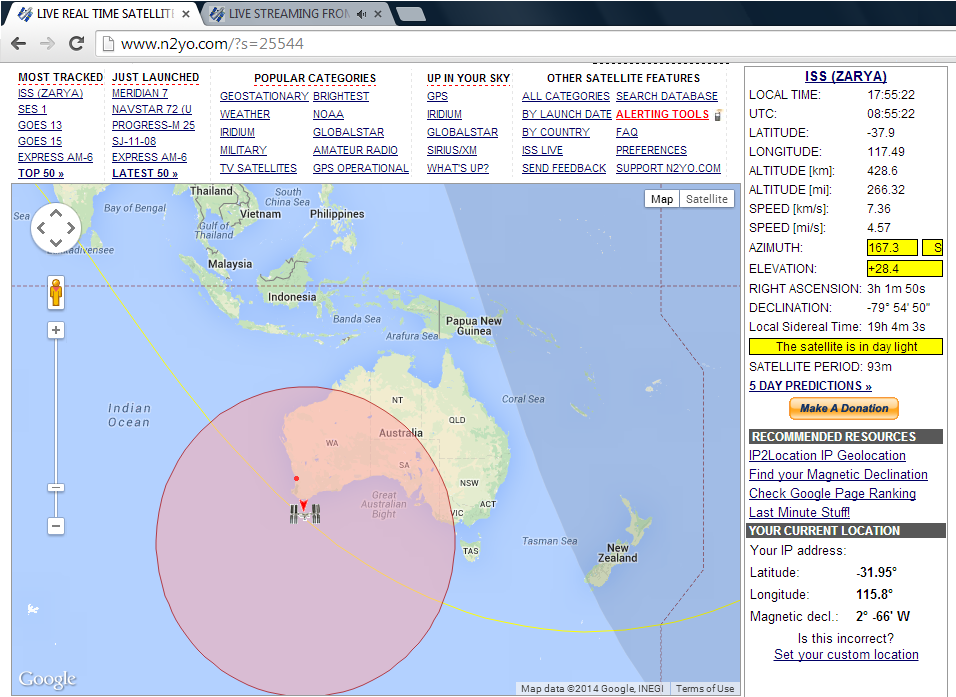

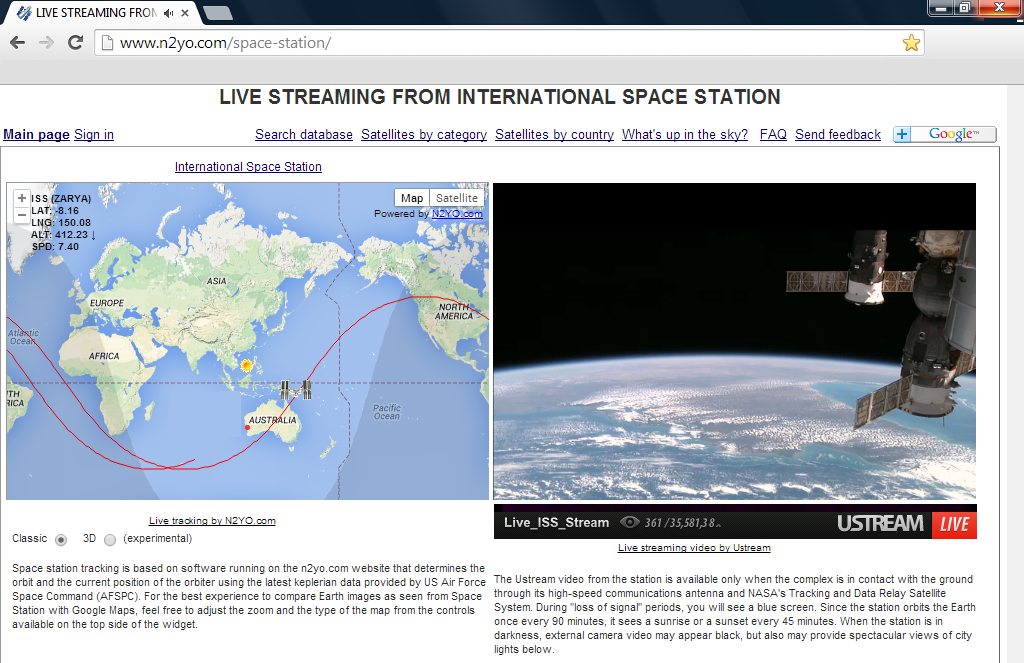

Get orbital info from this webpage You will need to be inside the footprint to receive the FM signal	You can also see downlink video on this webpage

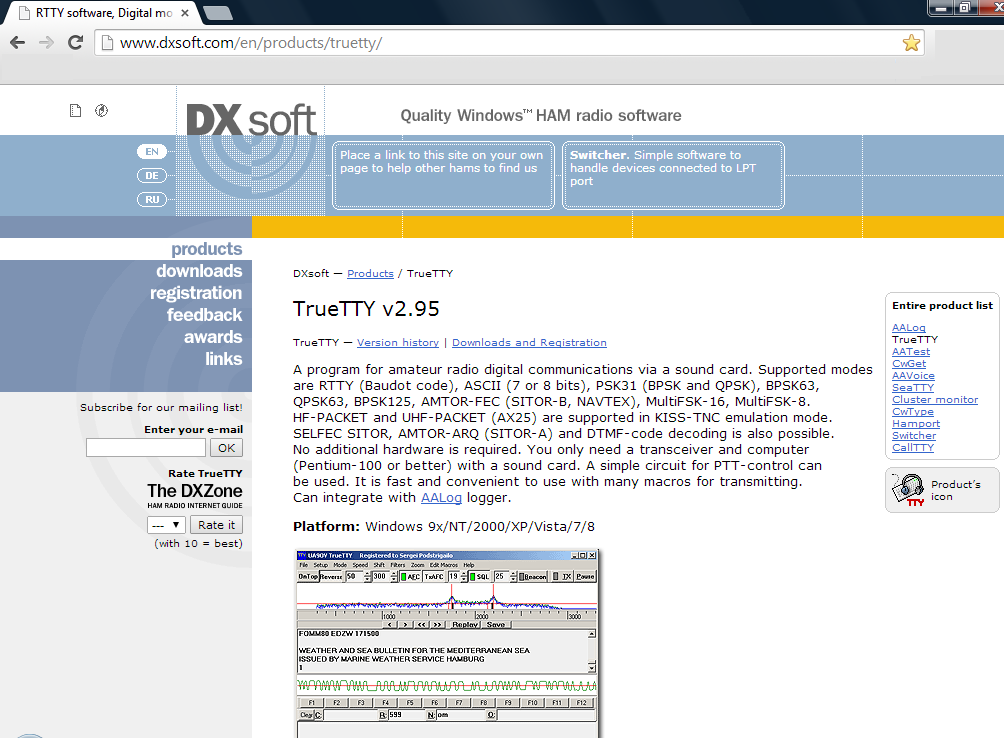

I use decoding software (TrueTTY) from this webpage Select AX.25 UHF	Example of decodes received

For my reception set-up I use the same rig as for 162 MHz AIS reception. Works OK

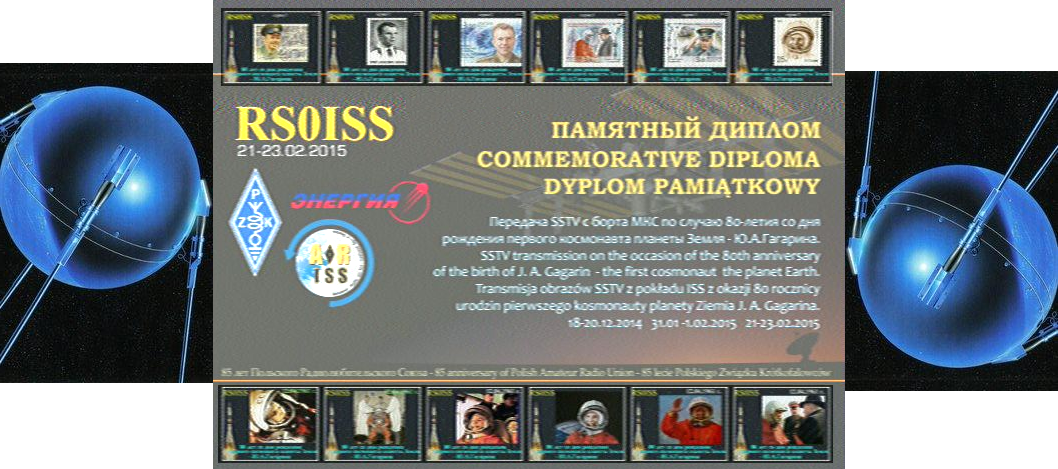

ISS SSTV transmissions on 145.8MHz FM received Dec 2014 (click to enlarge)

ISS SSTV transmissions on 145.8MHz FM received Apr 2016 (click to enlarge)

ISS EVA above Cook Strait N.Z.

Why Spacecraft Orbits look wave-like on maps Animation

click picture for "off-air" audio received from ISS (Tomsk test) 11 May 2016

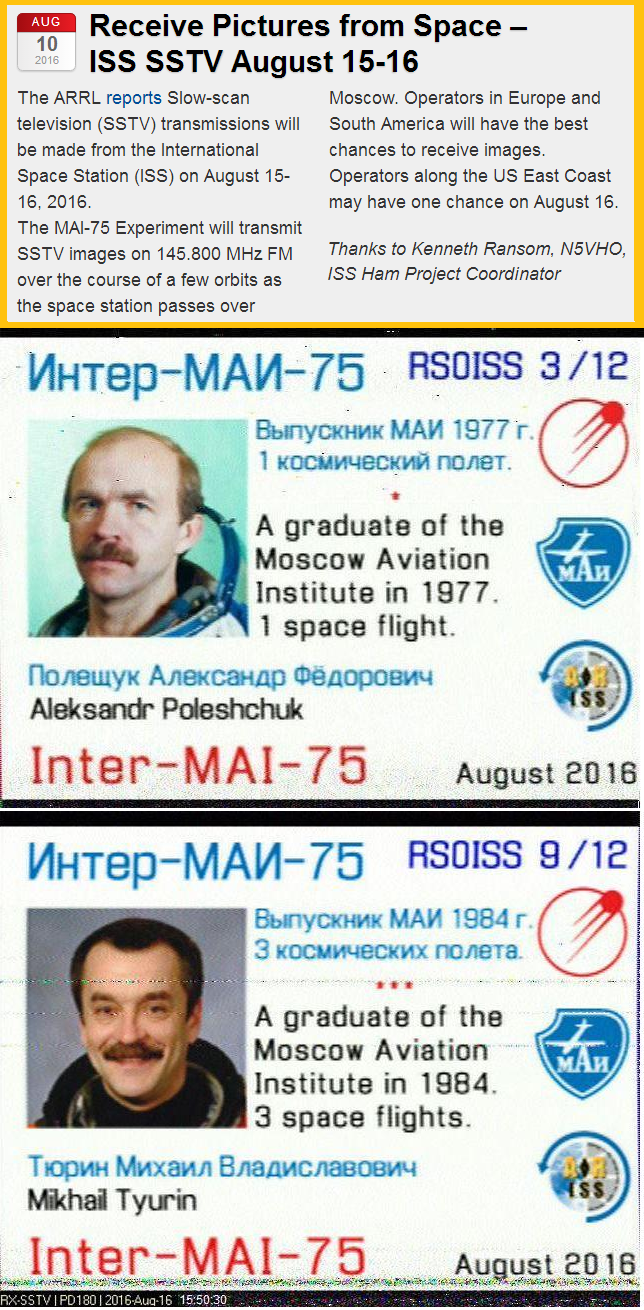

SSTV frames received 15 & 16 Aug 2016 in PD180 mode ! (187 sec xsmn time)

Where it "ALL" started!
