The taper (also called "law") of a pot is important.
We need not worry
with trimpots, since they are almost always linear, and I do not know of a
supplier of anything other than linear trimpots.
For all panel pots, we must
be aware of the use the pot will have, and select the correct type accordingly.
The most common use of a pot in audio is as a volume control.
Since our
hearing has a logarithmic response to sound pressure, it is important that the
volume control should provide a smooth variation from soft to loud, such that a
given change in position of the pot causes the same sensation of volume change
at all levels.

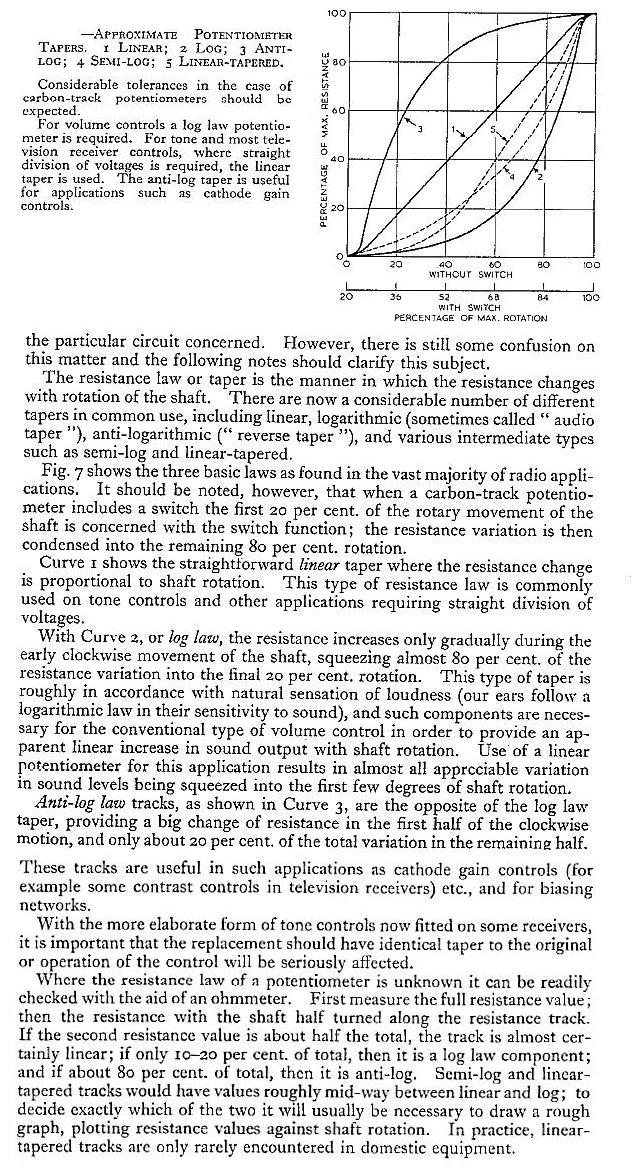

POTENTIOMETER TAPERS
First, the term "taper" needs some explanation.
Potentiometers have
different resistance tapers.
A linear taper potentiometer has the same
resistance change for given angle rotation of the shaft regardless of whether
the wiper is at the lower, middle or top end of its travel.
When starting
from zero signal and increasing the control slightly, the audio signal will
rapidly increase at first.
Above the mid point there seems to be relativley
little increase in volume.
To overcome this undesirable feature,
potentiometers are available with logarithmic tapers.
In the early days, when
an audio taper (logarithmic, or just log) was needed, the resistance element was
indeed tapered,
so that it provided a different resistivity at different
settings.
By changing the physical taper, it was possible to make a pot
provide the exact gradient of resistance needed.
By definition, a linear pot
has no taper as such (the resistance element is parallel sided), but the term
has stuck, so we might as well get used to it.

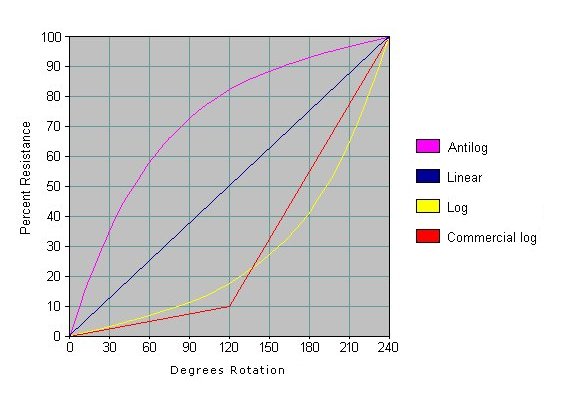

The violet curve in the diagram shows an antilog or reverse audio taper pot.
These are uncommon, but used for balance controls using a log/antilog dual
section (commonly called dual gang) pot.
It is shown on the graph mainly for
its interest value, but they are generally an historical component now.
All this tapering proved a rather expensive exercise, so manufacturers
economised ("they" won't notice the difference!), and worked out a method of
using two resistance elements of differing resistivity, and joining them to
create what I referred to as the "Commercial log" taper.
In short, it
doesn't work (not properly, anyway),
and the discontinuity where the two
sections join is almost always audible with cheap "log" pots.
I suggest that
you get an old pot and dismantle it
so that you can see exactly what is
inside.
I could show you some photos, but there is nothing like doing it
yourself to really get to know the subject.
Pot Markings
Now, this should be dead easy - a simple code to
indicate the resistance and law of a pot should cause no grief to
anyone,
right? Wrong! It wouldn't have been so bad if someone hadn't decided
to change it,
and even then, it wouldn't have been so bad if there was no
overlap between the "old" and "new" "standards" ... I think you can see where
this is headed by now.
| Taper | Old Code | New Code | Alternate |
| Linear | A | B | LIN |
| Log (Audio) | C | A | LOG |
| Antilog | F | N/A | N/A |
If the maximum dissipation is 0.5W and the resistance is 10k, then the
maximum current that may flow through the entire resistance element is
determined by ...
Voltage - Two separate issues here.
One is directly related (in
part, at least) to the power rating, and is important to ensure that the life of
the pot is not reduced.
Knowing about the other might save your
life.
Voltage across resistance element - The maximum voltage across the
example pot from above is 7mA x 10k, = 70V.
This will rarely (if ever) be
achieved in an audio system, but is easy with many other designs.
As the
resistance increases, so does the voltage - a 0.5W 1M pot will pass only 700uA
at maximum power rating, but the voltage needed to create this current is
700V.
Unless the pot is actually rated to withstand 700V across the
resistance element (rather unlikely), it will fail - maybe not today, or
tomorrow, but it will fail eventually.
Special pots are made
(custom jobs, of course) for high voltages, and standard pots should never be
used beyond their rating - assuming that you can find out what the rating is, of
course.
Dielectric Voltage - The dielectric (insulation of pot "guts" to the
body) rating is especially important if the pot is connected to mains operated,
non-isolated equipment.
Wall mounted lamp dimmers and such are typical
examples.
This is not commonly specified, but for safety, should be at least
2.5Kv
A common way to achieve this is to use a plastic shaft, with the body
of the pot insulated from the chassis, and inaccessible by the user (even if
the knob falls off or is removed!)
This point cannot be stressed
highly enough.
Most standard pots will safely withstand (maybe) 100V or so between the
resistance element and terminals, and the body and shaft.
Miniature types
will usually be less than this.
Never, ever, use a standard pot with
a metal shaft to control direct mains operated equipment.
| Material | Manufacturing Method | Common uses | Power (Typ) |
| Carbon | Deposited as a carbon composition ink on an insulating (usually a phenolic resin) body | Most common material, especially for cheap to average quality
pots. Has a reasonable life, and noise level is quite acceptable in most cases. (DC should not be allowed to flow through any pot used for audio control) |
0.1 to 0.5W |
| Cermet | Ceramic/metal composite, using a metallic resistance element on a ceramic substrate | High quality trimpots, and some conventional panel
mount types (not very common). Low noise, and high stability. Relatively limited life (200 operations typical for trimpots) |
0.25 to 2W (or more) |
| Conductive Plastic | Special impregnated plastic material with well controlled resistance characteristics | High quality (audiophile and professional) pots, both rotary
and linear (slide). Excellent life, low noise and very good mechanical feel |
0.25 to 0.5W |
| Wire wound | Insulating former, with resistance wire wound around it, and bound with adhesive to prevent movement | High power and almost indefinite life. Resistance is "granular", with discrete small steps rather than a completely smooth transition from one resistance winding to the next. Low noise, usually a rough mechanical feel. |
5 to 50W (or more) |
