My inspiration derives from the following websites: (clickable links)

	http://www.ct1ffu.com/site/hf-converter.pdf http://www.ct1ffu.com/site/fcd-hf-kit.pdf http://www.ct1ffu.com/site/hf-convertorv3.pdf
	http://www.george-smart.co.uk/wiki/FunCube_Upconverter

Based on the success of others (above);

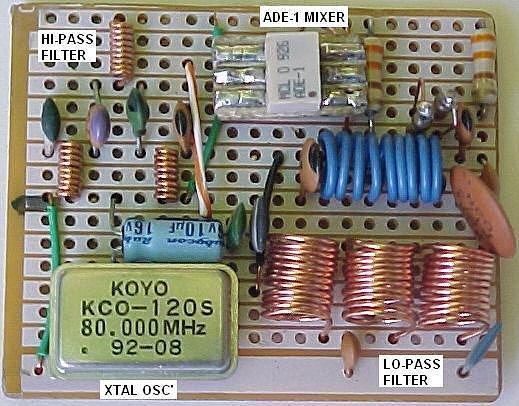

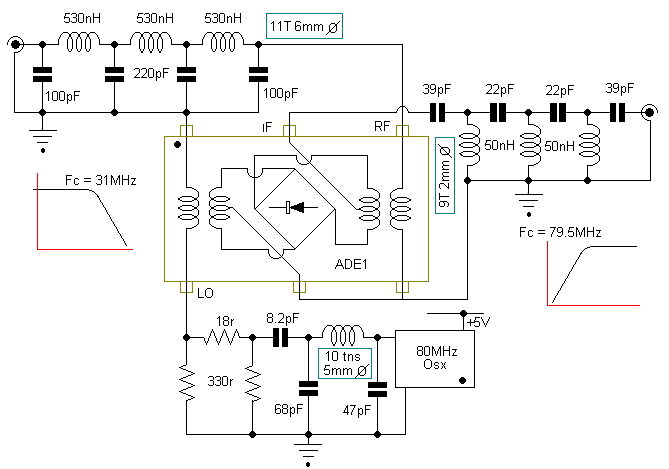

One could construct and connect this HF "up-convertor"
This will then translate the MF/HF spectrum (0.5~30MHz) to within

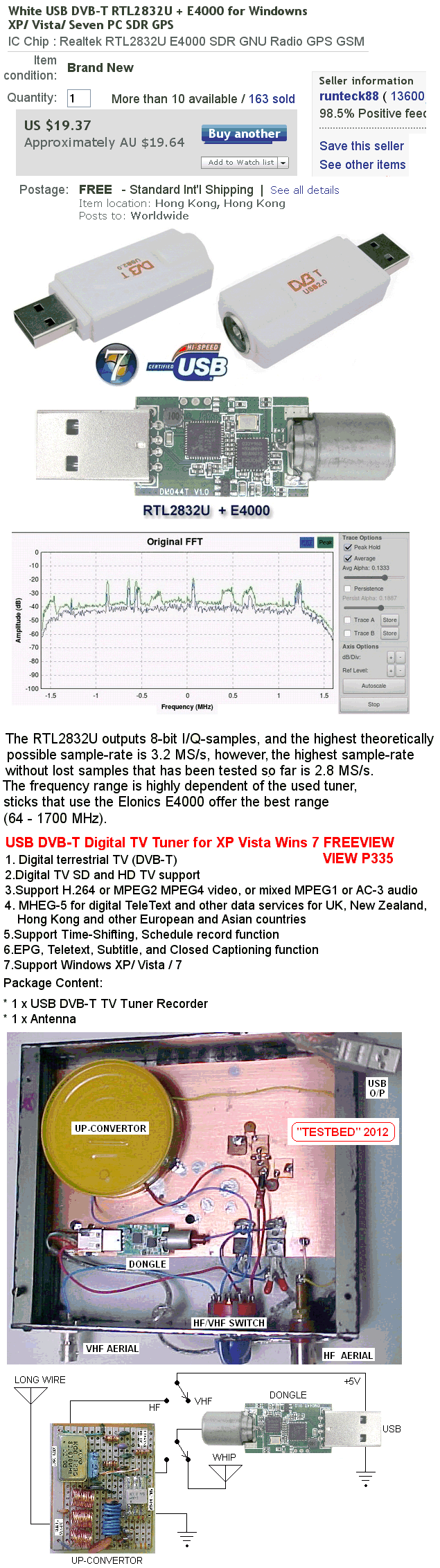

the tuning range of the "dongle" (64~1700 MHz)
0.5 MHz is the lower limit of the ADE-1 passive/diode mixer. (0.5-500 MHz +7dBm)
Filter inductances are easily measured using my LC meter,
and a good starting point is to use an on-line calculator like that from Harry SM0VPO,
to estimate Nr of turns, coil diameter etc.

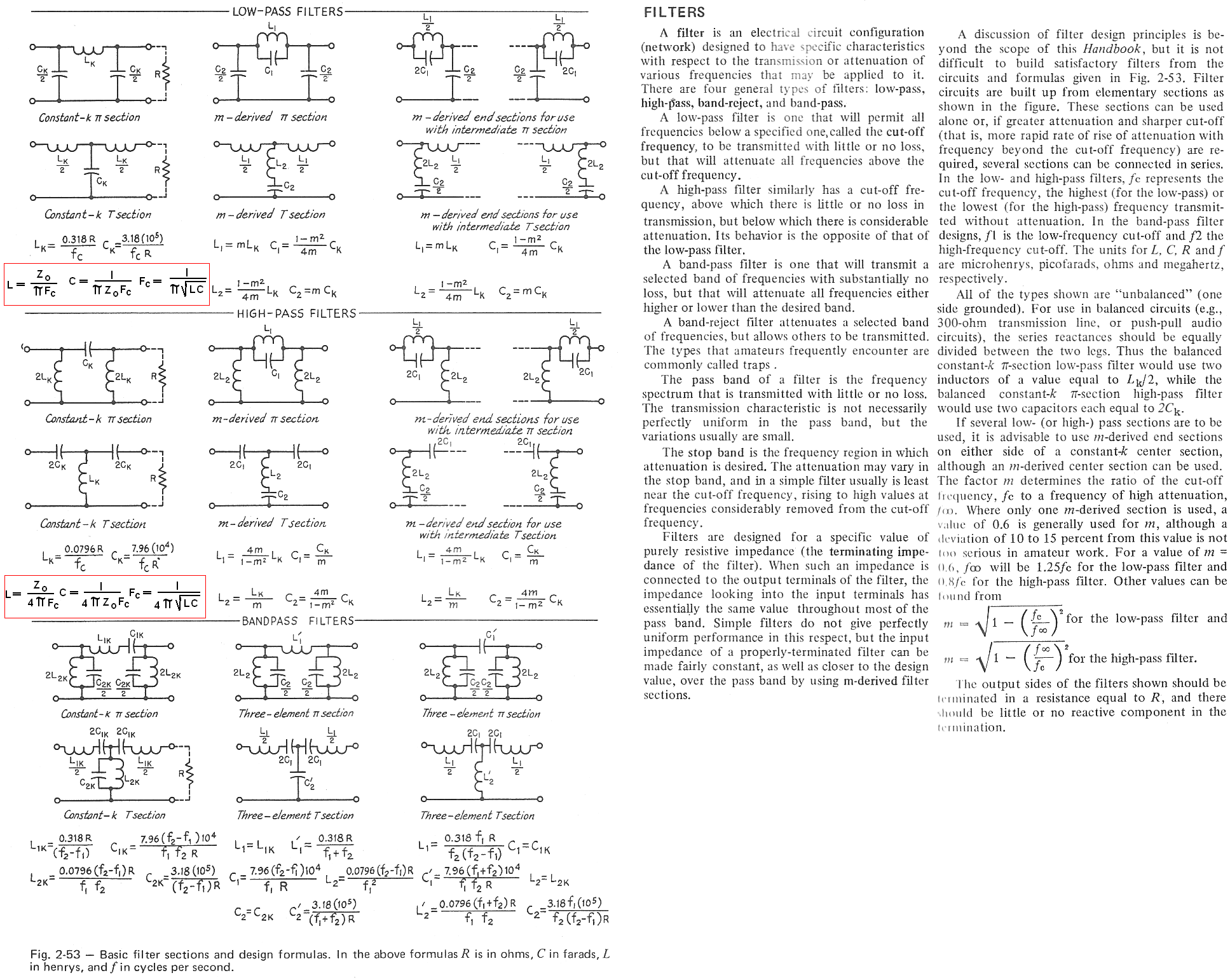

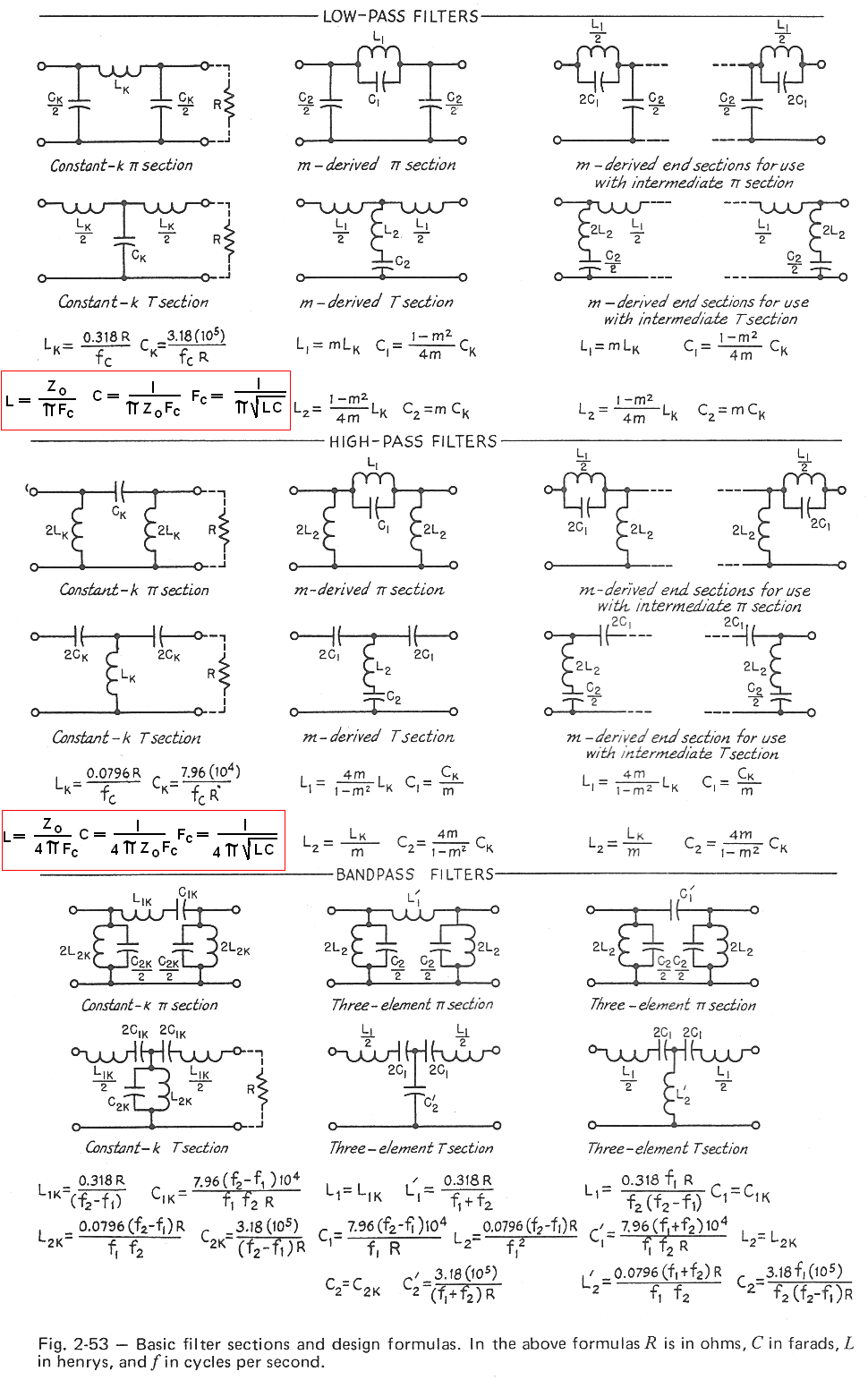

The low-pass and high-pass filters are based on standard designs
that I found in my 1975 ARRL handbook (pg 50) "click to enlarge"


For a well written analysis of up-convertors and the "RTL2832 dongle" see: http://f5rct.free.fr/explorer/Documents/Banc.Essai/HFconverterReport.pdf

For a critique of the "RTL2832 dongle" w.r.t. poor RF sensitivity, see: http://www.vklogger.com/forum/viewtopic.php?f=23&t;=10527#p24765
