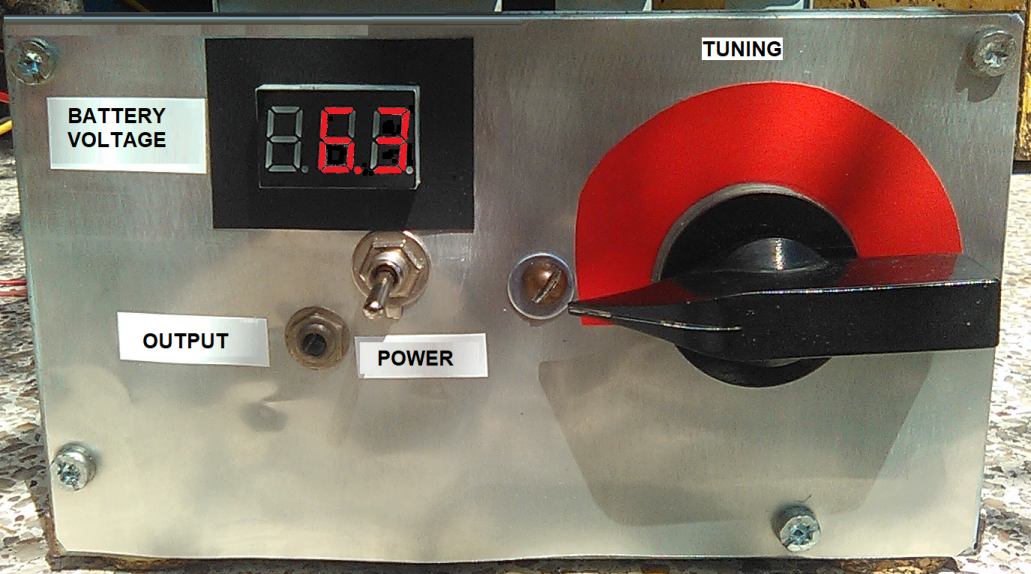

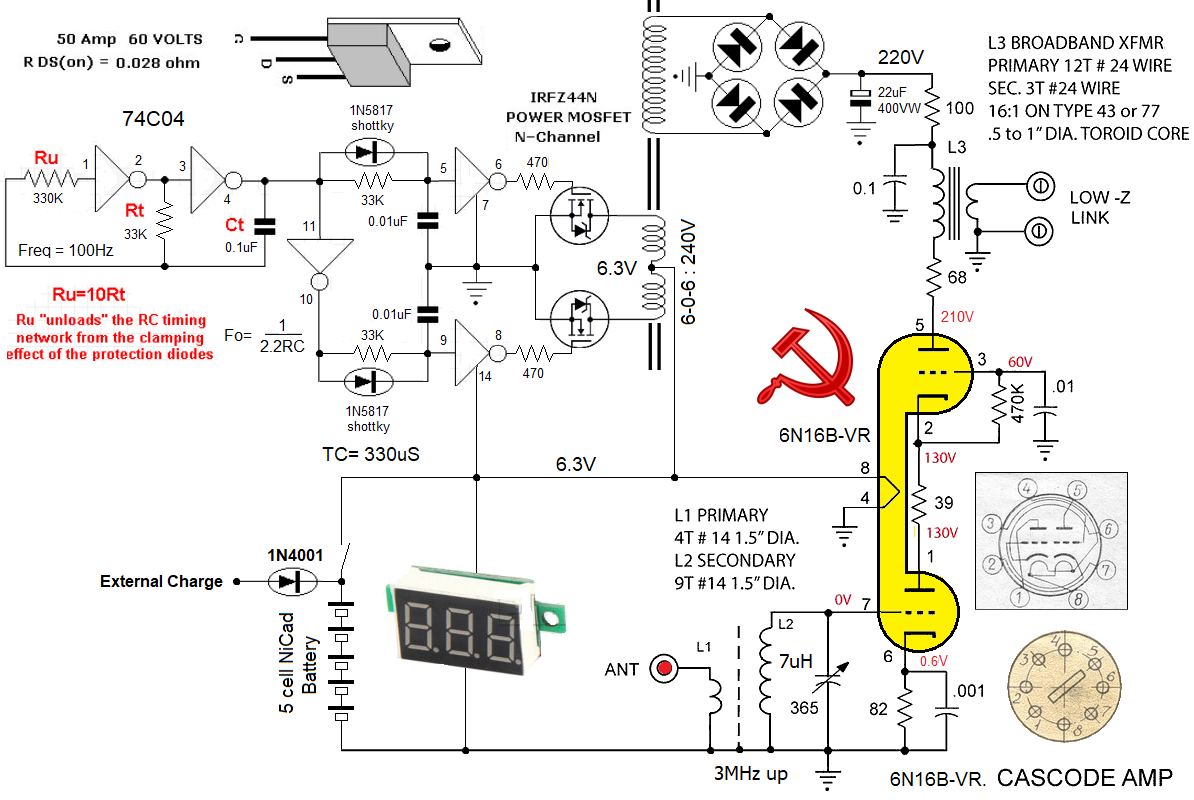

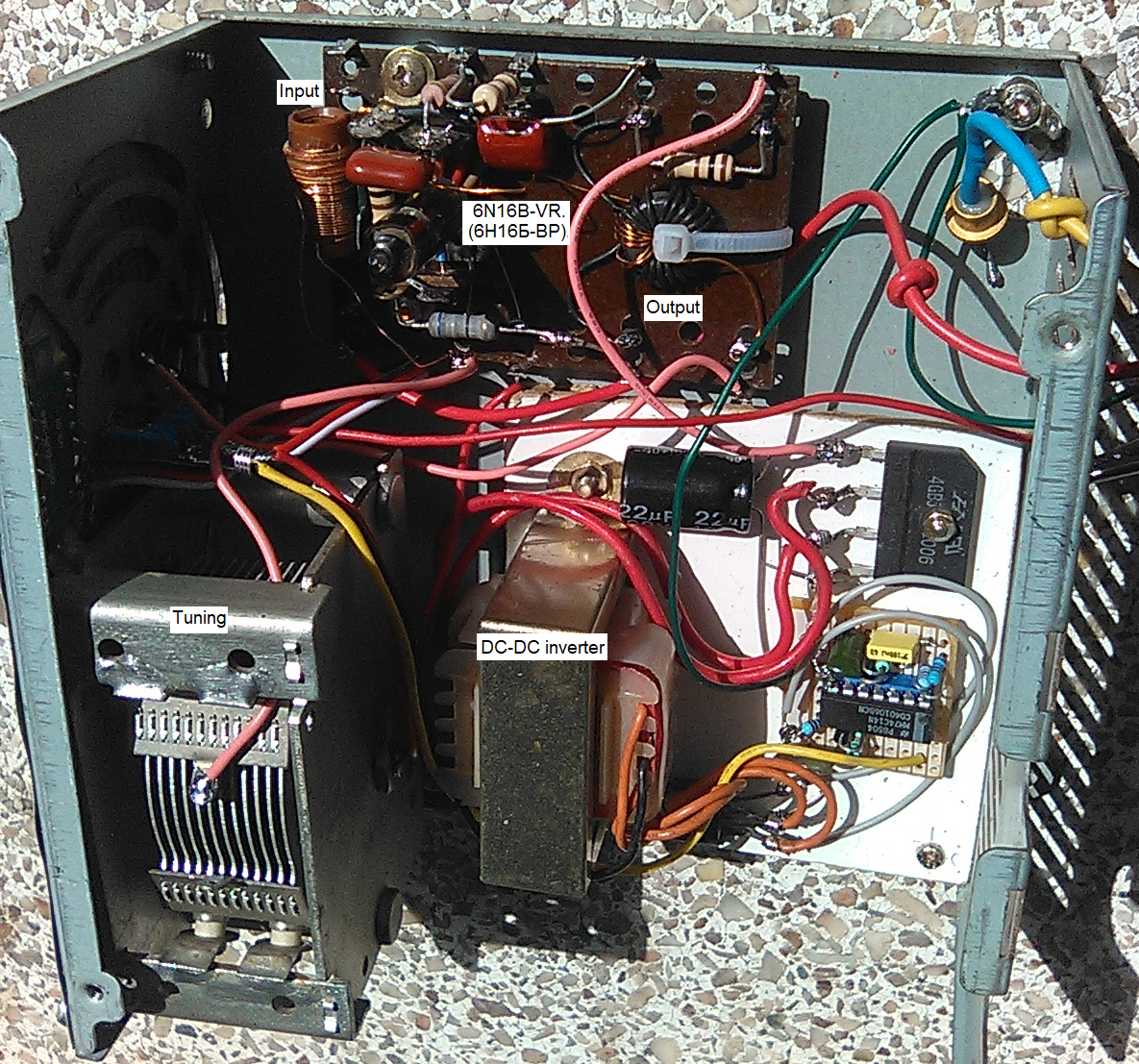

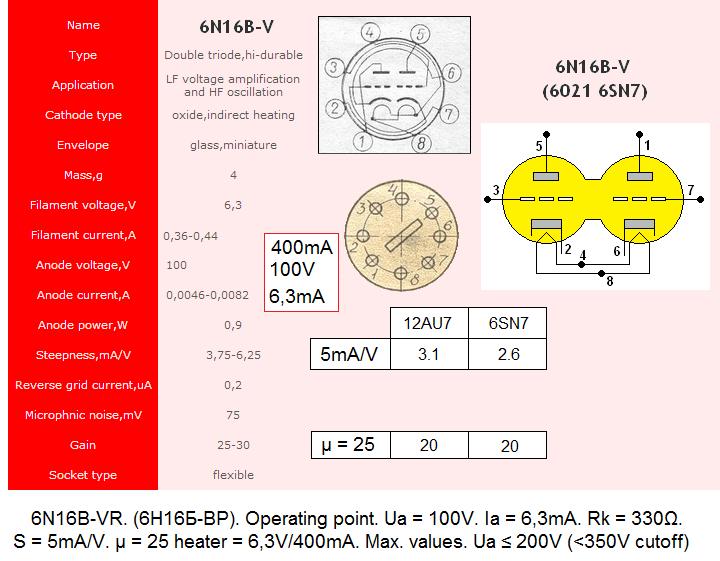

Here is a valve (electron tube) based Cascode RF pre-amplifier. The circuit design is basically from Shortwave Cascode Preselector (WU2D) I have utilized the same circuit as referenced, but with the following changes: A 6n16b small wire ended Soviet twin-triode is used (see spec's below) To make the unit portable a 5 cell Ni-cad batery is used as a power source. 5 series'd Sub-C cells 2,200mAH capacity. The nominal 6 volt battery supplies both the valve filament and also a DC-DC inverter which is needed to supply 220V for the valve anode circuit. The inverter is the same unit as described here: From the Serviceman Who Tells - (Nr4) Solid State Vibrator upgrade for old radios A small digital voltmeter is fitted to show battery voltage. Battery life is definitely limited by current drain which is 450mA approx
ATM anticipating field trials to see how it performs compared to 'Cascode' design JFET RF pre-amp' © 3Q 2019 |
