Data booklet QUADZILLA (1973)

From the Analogue World of the past; details, operation and circuit applications.
Promoting single chip family that contain 4 (quad) identical linear devices.
such as (single voltage supply) op-amps, comparators, norton amps etc.

     1      2
     3      4
     5      6
     7      8
     9    10
   11    12
   13    14
   15    16
   17    18
   19    20

One usefull circuit I fabricated:-

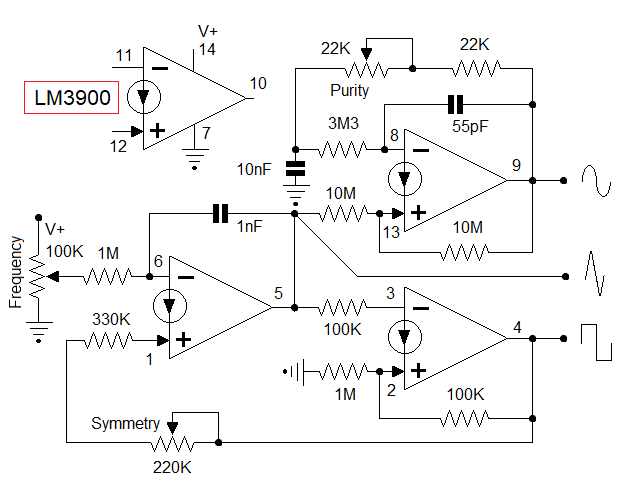

LM3900 based Function generator (square/triangle/sine)
my (March 1996) notes say "worked well"
